Superimposed

Next

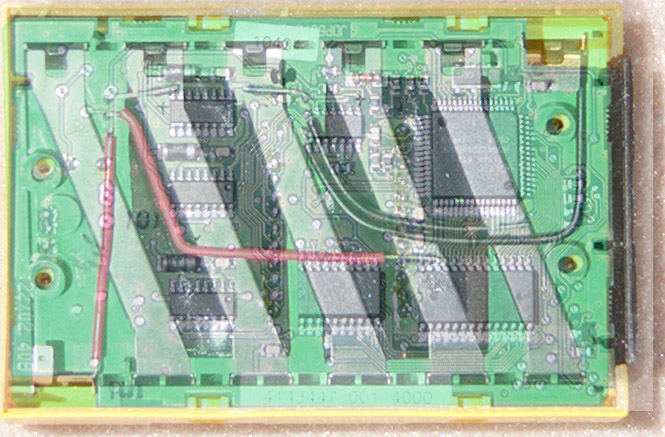

I took a picture of the backside, mirrored it, and superimposed it on a picture of the CPU board so you can see the wire routing. the 3 chips in the bottom right are too high to have wire go over them. Similarly, the three diodes on the left (one is just below the bend in the red wire) are too thick to have a wire go over them. I had to trim back the 3 pin header for negative side so it wouldn't interfere with IC in the top middle. Smaller...
