Backside of RCX top piece

Next

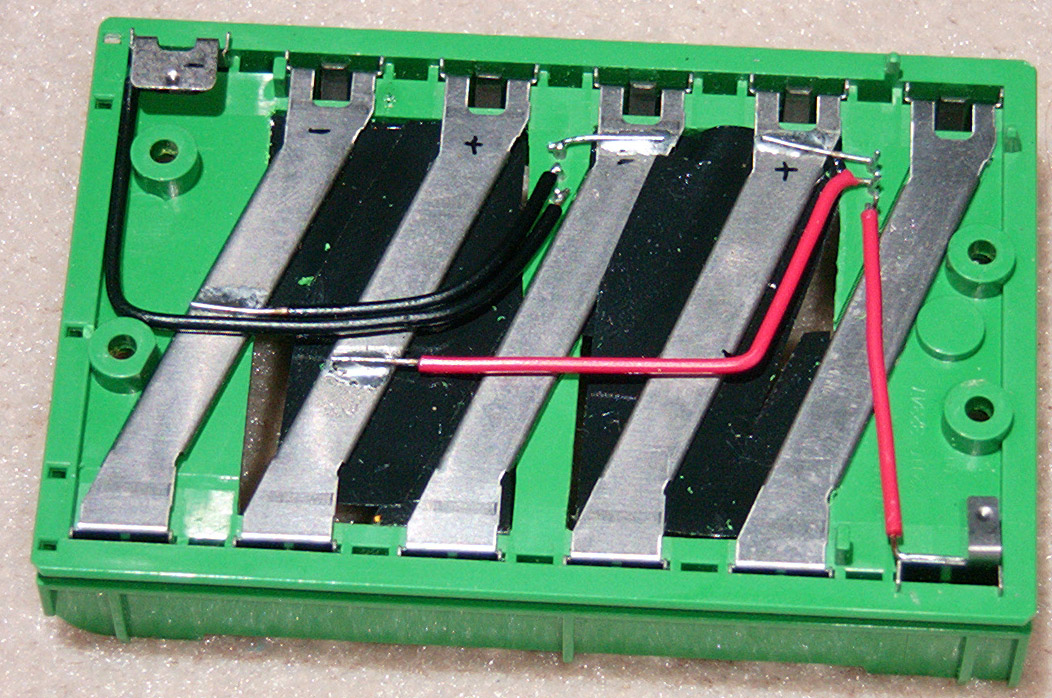

Here's a picture showing the wires which were added on the backside. The red wires are positive and the black wires are negative. The + and - written on the metal conductors are how the 9v batteries will be when they're connected. The wires need to be very carefully positioned so that they don't interfere with the surface mount chips and other discrete components on the CPU board. Smaller...
