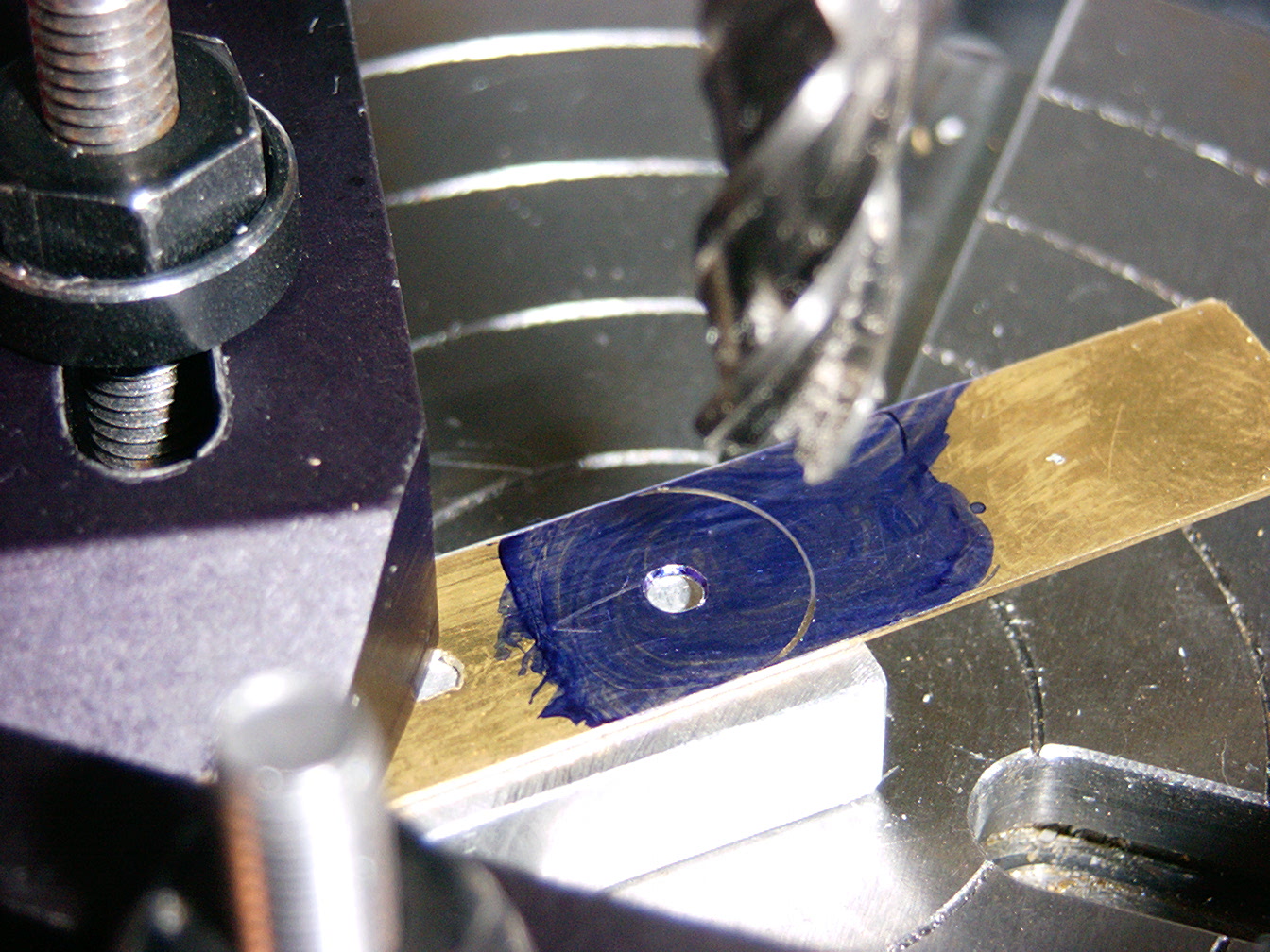

Check Work Piece Alignment

I put some layout blue on the brass, and moved the Y axis by half of the width of the brass piece. I lowered the brass pointed piece and rotated the table 180 degrees. The line left by the point will become the outline of end. The brass point is replaced by an end mill and the Y axis is offset by 1/2 the width of the end mill. Smaller...
