Align Workpiece

Next

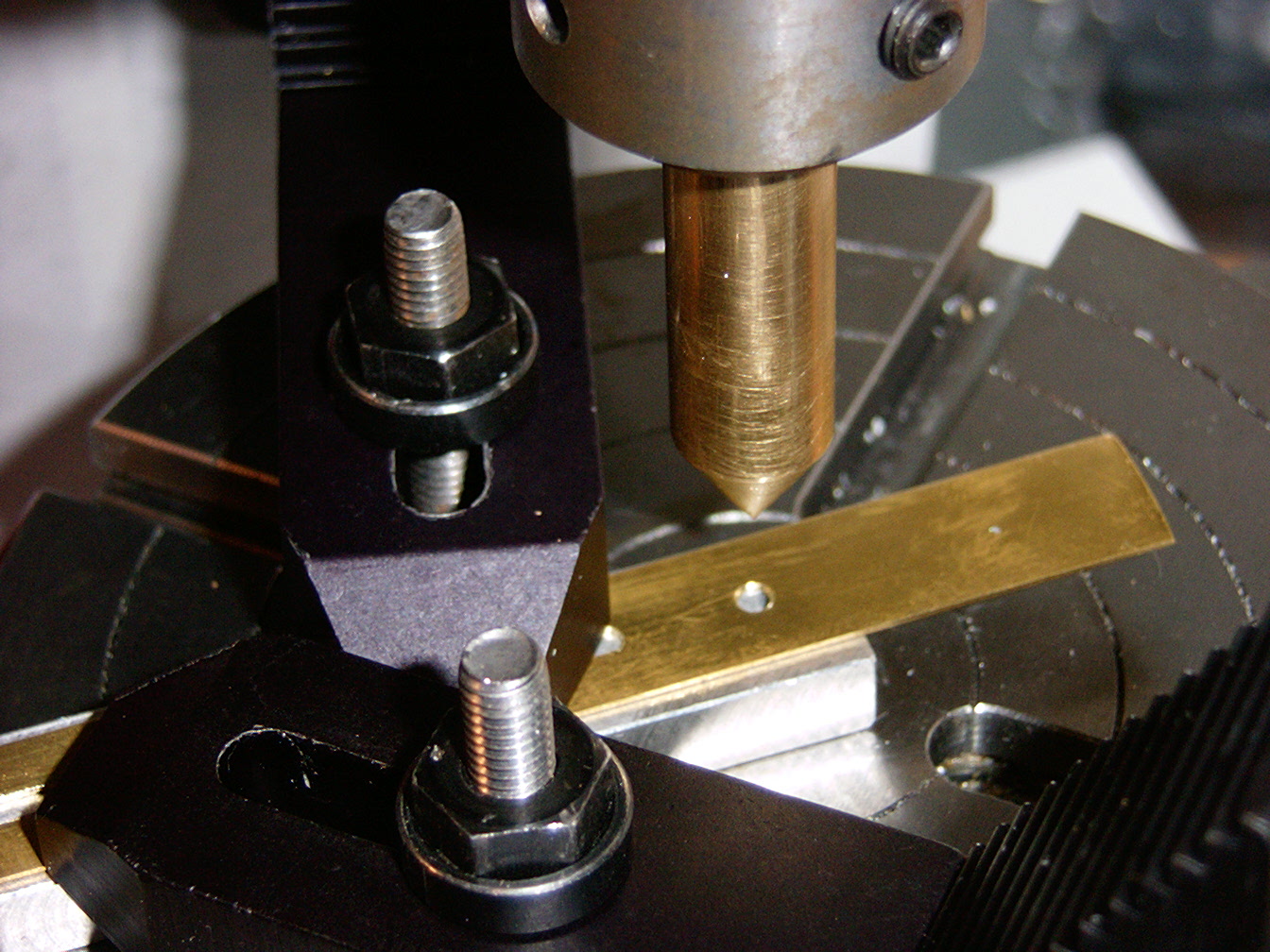

Now that the rotary table is lined up with the spindle, the workpiece needs to be lined up as well. I put a taper on the end of the brass rod and used that to center the hole in the workpiece with the spindle. There was a small hole in the scrap underneath to allow clearance for the brass piece. The work piece also needs to be well clamped. Smaller...
