Front Sensor Schematic

Next

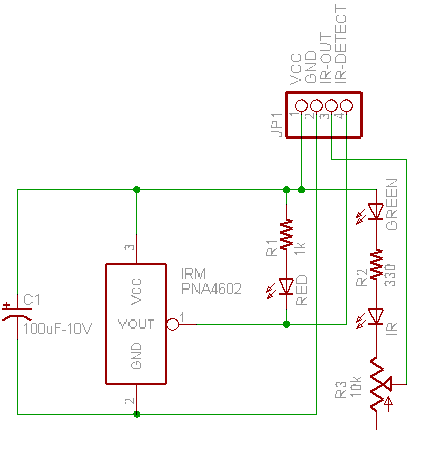

This is the schematic for the front sensor. It's also available in Eagle format. The green LED is in series with the IR LED, and this gives positive feedback of when the IR sensor is lit up. The red LED is connected to the output and gives an indication of when an opponent is detected. Smaller...
