Grounding wire for GP2D12

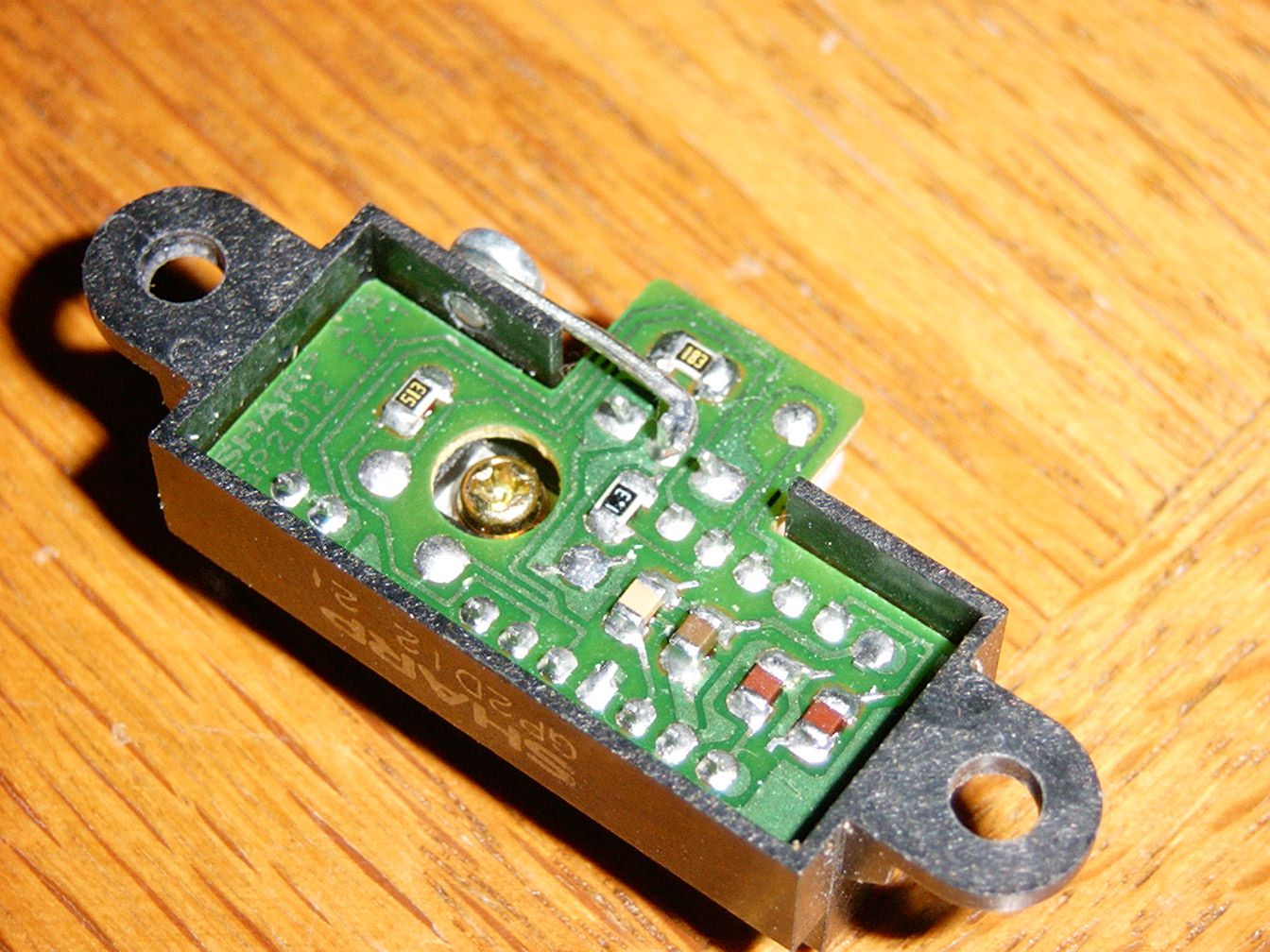

From the back you can see the wire from ground (the middle wire from the connector) to the screw. When I first did this, I didn't make the screw short enough, and it shorted against the trace closest to the screw. You can see a little shiny spot where this happened. Needless to say, the sensor didn't work when this happened. Smaller...
