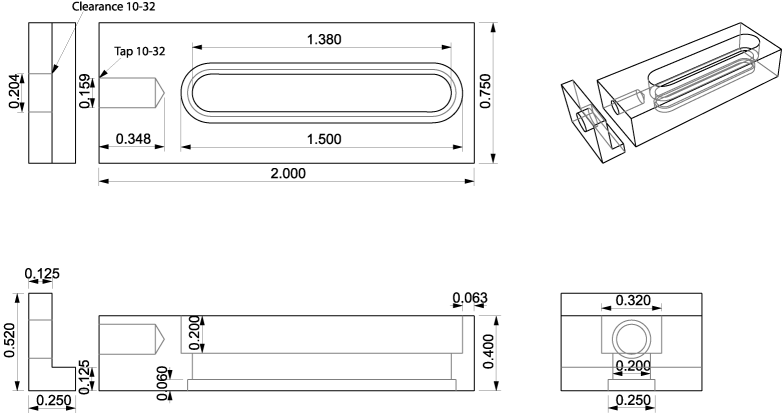

Movable Clamp Drawing

Here's a dimensioned drawing of the moveable clamp. It's also available in PDF form, and Rhino form. Bigger...
