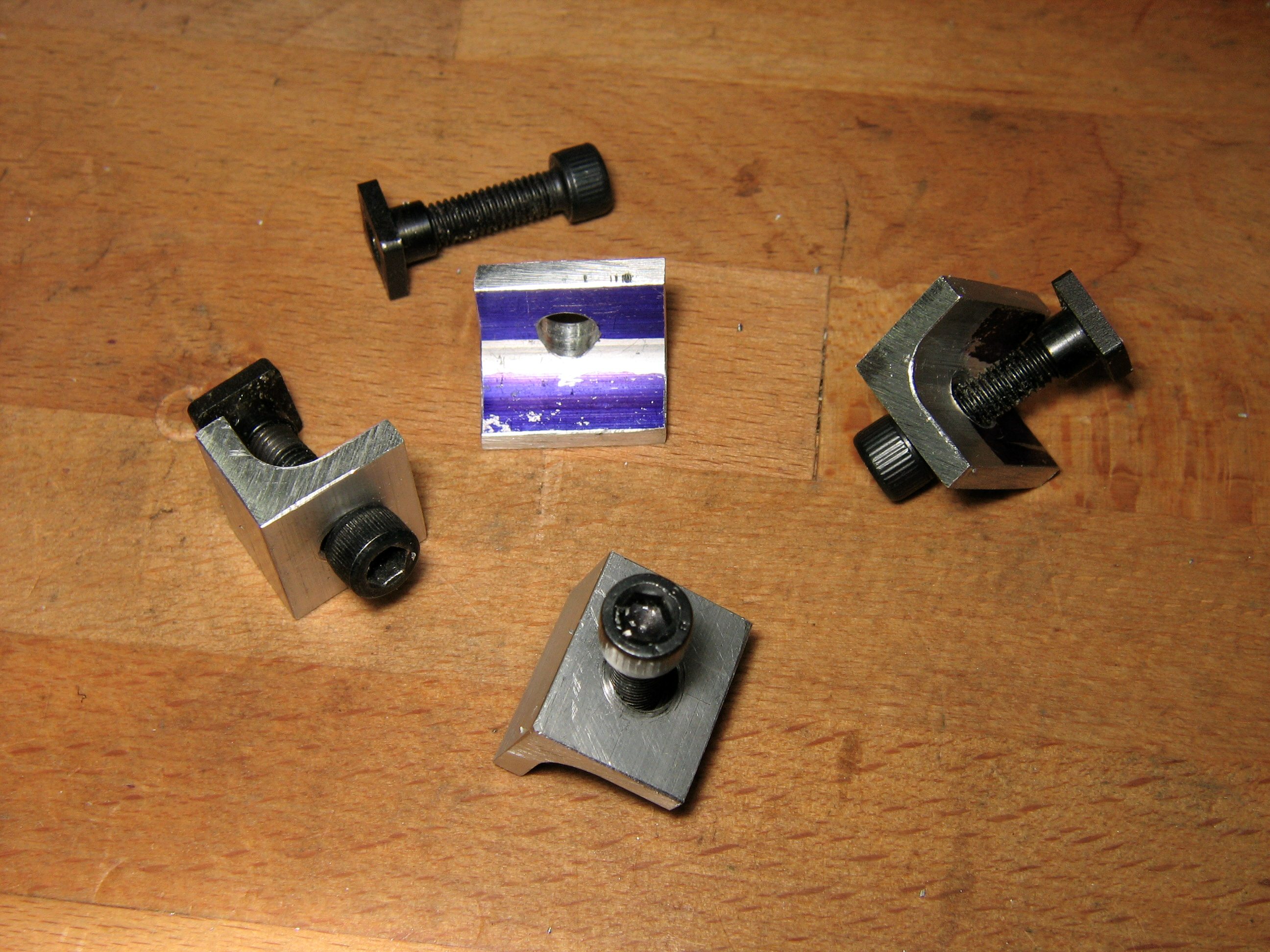

Hold Down Clamps

Next
I started with some 1-1/2" aluminum angle, that was 1/8" thick. See the drawing below for measurements. I applied some layout blue, and marked off the appropriate dimensions. Then I rough cut everything using my metal bandsaw. A file was used to finish things off, and I drilled the holes using my drill press. Smaller...
