Add Relief

Next

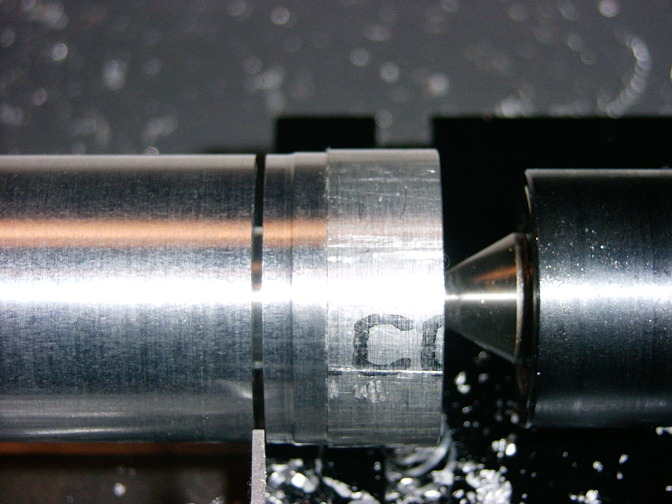

The extender shaft was then reversed end for end, faced, and center drilled. I decided to make the end portion of the shaft 0.680" long, and used the parting tool to reduce the diameter to 0.540". This would allow a 0.010" relief at the shoulder. Bigger...
