Tap Mounting Holes.

Next

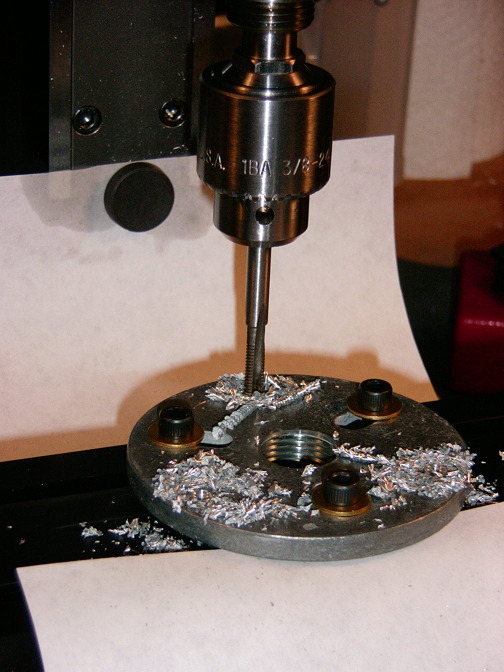

As each hole was drilled, I tapped it using a 10-32 tap. I made the taper have a light fit with the draw bolt removed, and turned the drill chuck by hand. As the tap drew itself into the faceplate, it could wobble a little bit, but it stayed more or less square. The faceplate is fairly thin and of a soft material, so this could have been done fairly easily by hand as well. Bigger...
