Test Fit

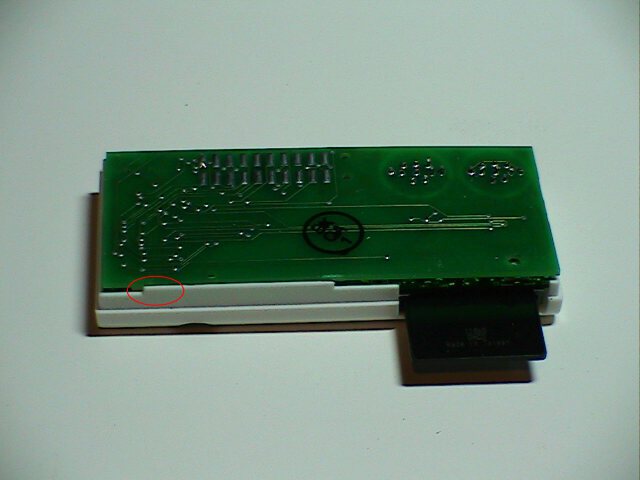

When you test fit, this white tab should touch the edge of the board, and it should touch all along the length of the tab. Before I filed off the serial connectors, I couldn't get the buddy board to sit square like it's pictured here. With the serial connector edges filed off, everything fit well. Bigger...
