Cutting Guide Rendering

Next

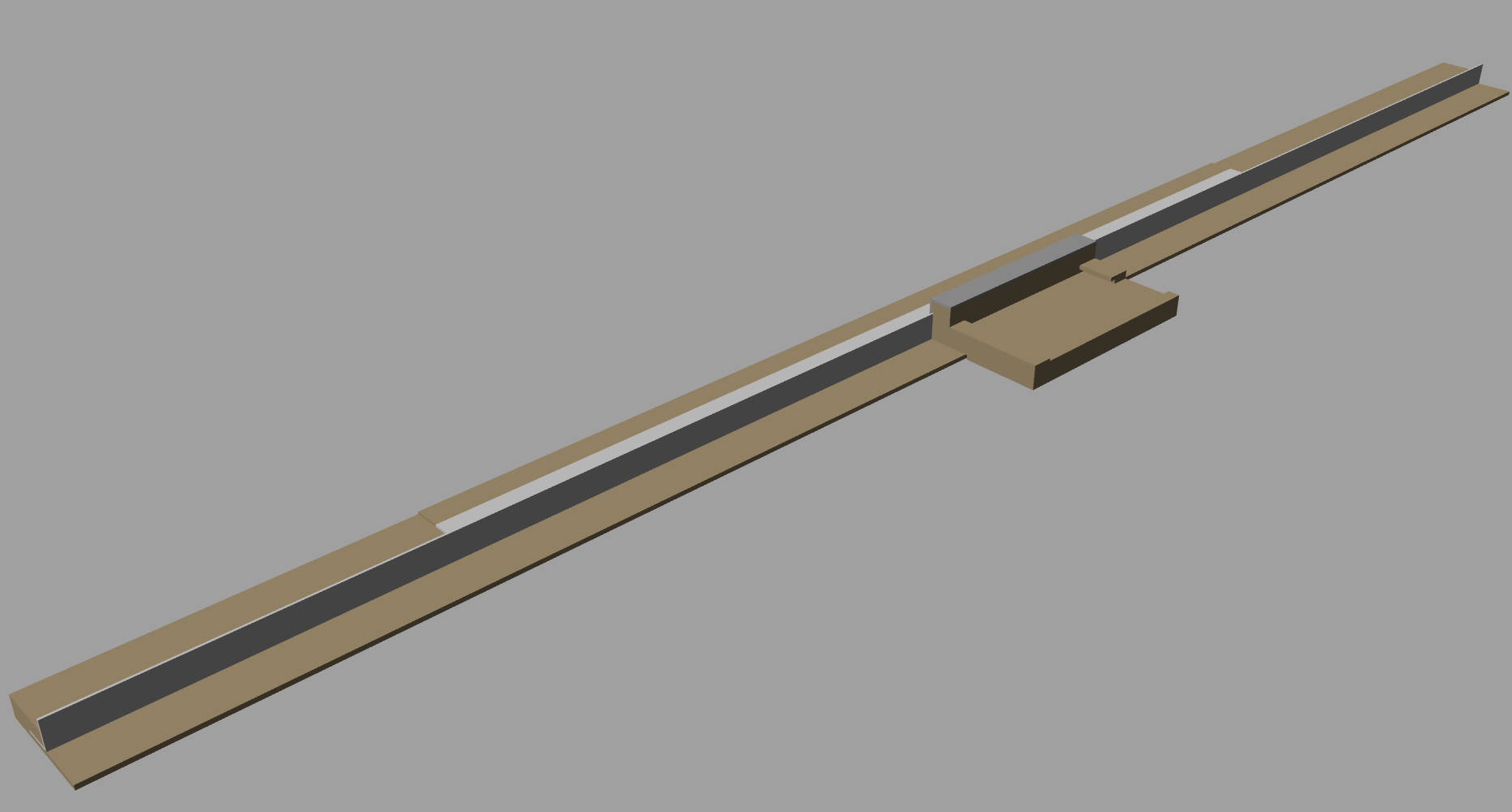

This is a rendering of the assembled Cutting Guide. The 3-D model is available in Rhino, DWG, DXF, and 3D Studio. The Rhino file is the native file, all of the others are exported.

The cutting guide splits into a 5 foot piece and a 4 foot piece. The really cool thing is that you can guide the circular saw with one hand, which is quite useful when cutting across a 4x8 sheet into two 4x4 sheets or two 2x8 sheets. Smaller...
