Wheel Mount

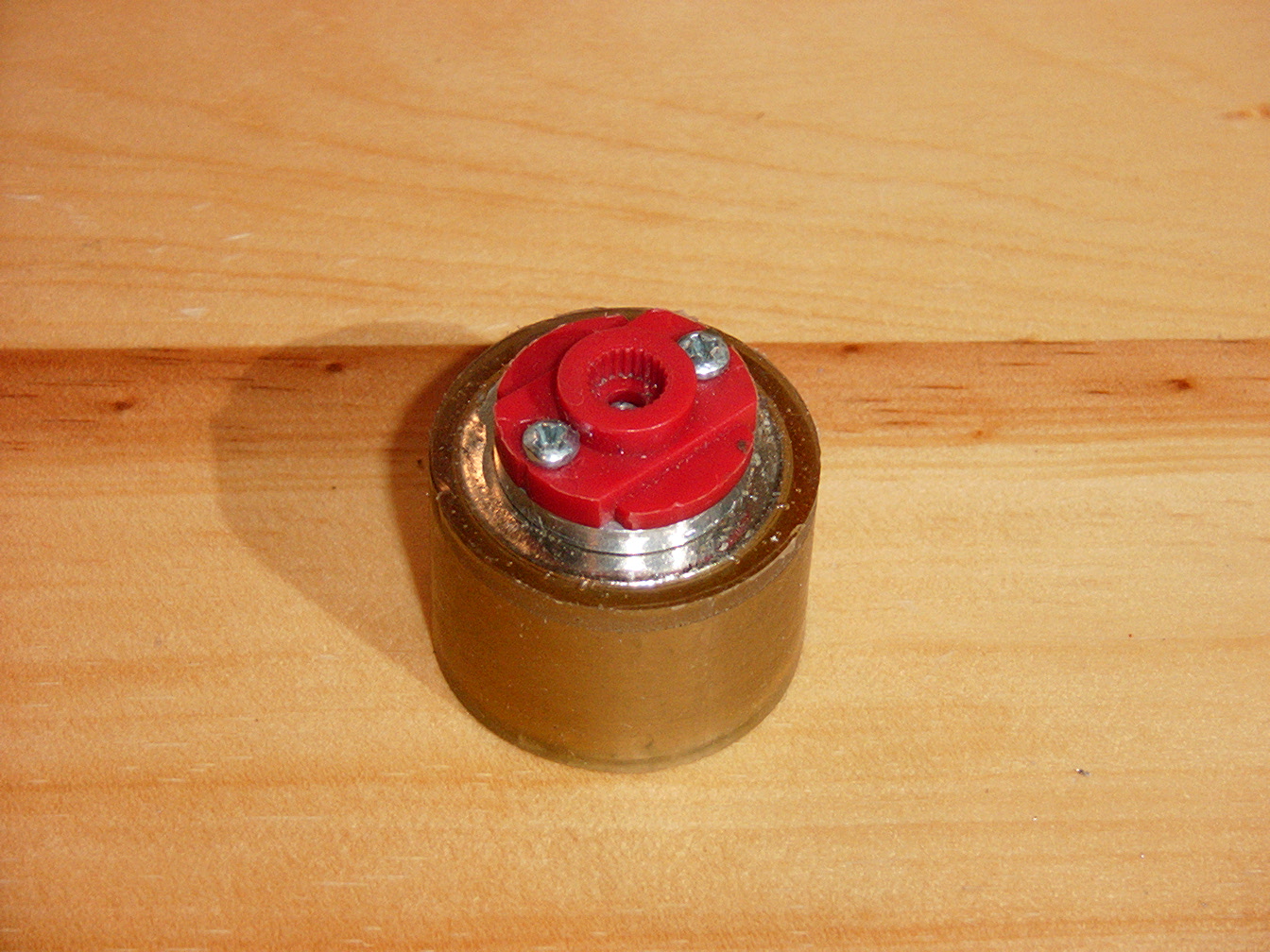

Here you can see the cut down servo horn which was used to attach the hub to the motor. The magnet wheels roll suprisingly easy on a steel surface. I originally made the tire out of A-20 polyurethane, but it was too soft and the magnets would deform it right off the wheels. I upgraded to A-60 and things are much better. Smaller...
