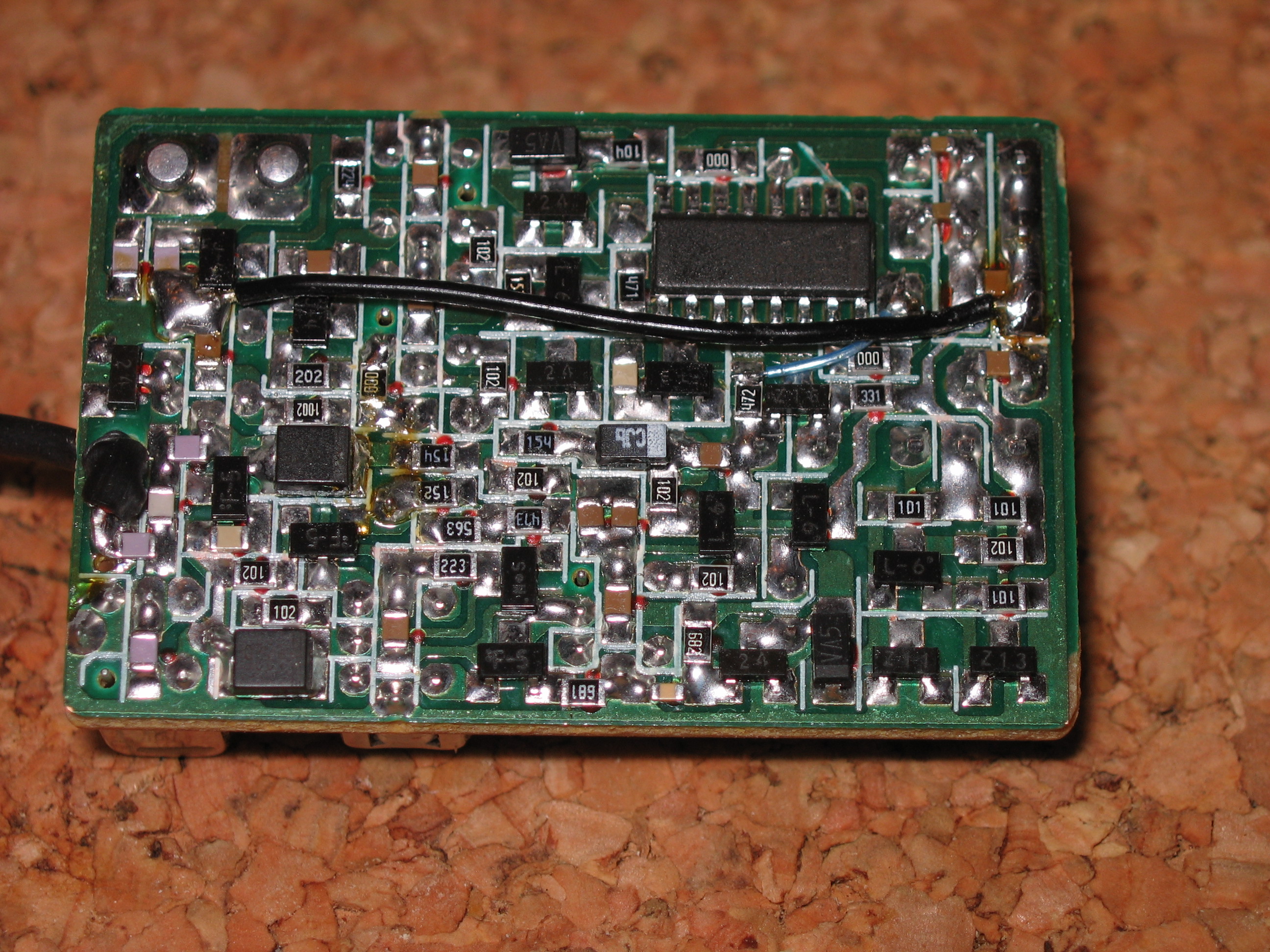

| So, I cut the trace leading to the extra signal line. You can see the cut just above the top-right of the HEF40175B. The output was originally connected to pin 2. I determined that a nearby resistor was connected directly to pin 9 (the clock) so I then added a piece of blue wire wrap wire from that resistor to the unused channel pin. Smaller... |
