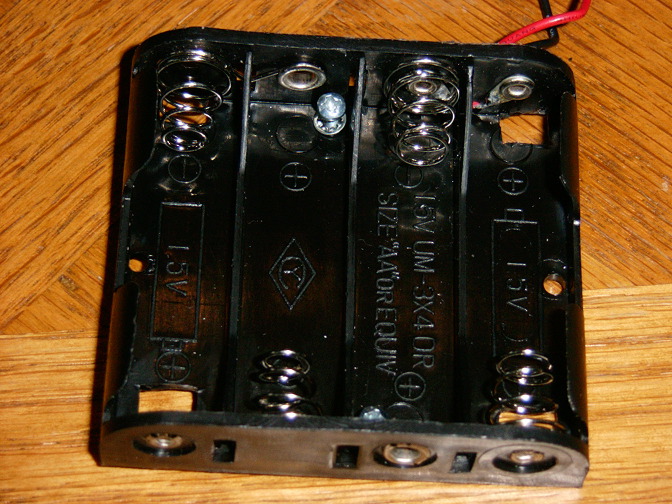

Modified Battery Case

I had to cut four holes in the case itself. This is where the bolt heads which from the vertical mounts that attach to the servos go. There are two #2 screws near the center that hold the battery case to the chassis. When the screws are screwed in all the way, the screw heads clear the batteries because the batteries are round. Bigger...
