Front Battery Case Mount

Next

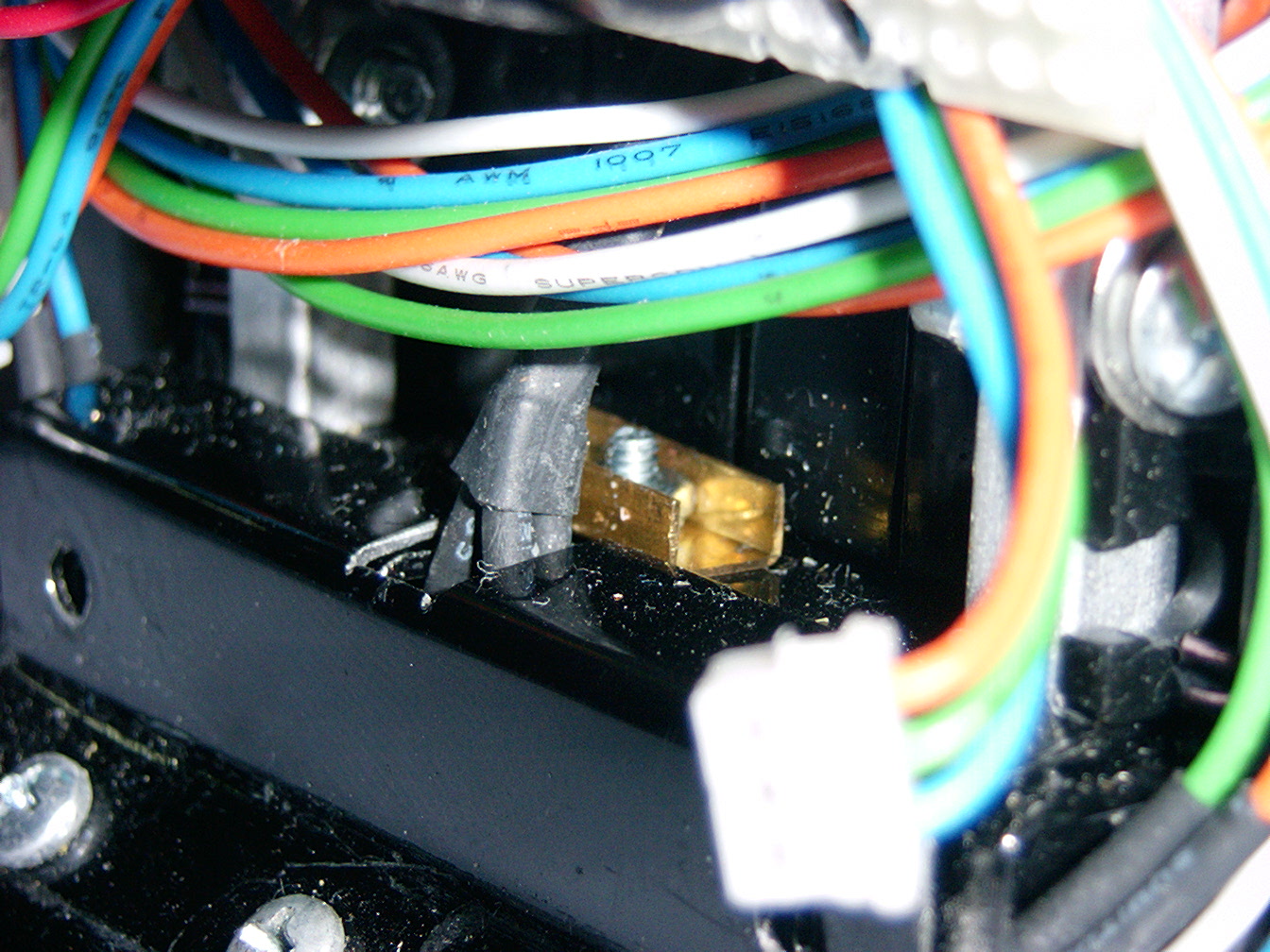

I cut a notch in the front scoop to allow the wires from the center sensor to be pushed a little bit further forward. They would normally be in the same position as the brass U channel seen in the picture. The brass U channel crosses the slot in the chassis (the slot is visible in the next picture). Smaller...
