Marauder Internals

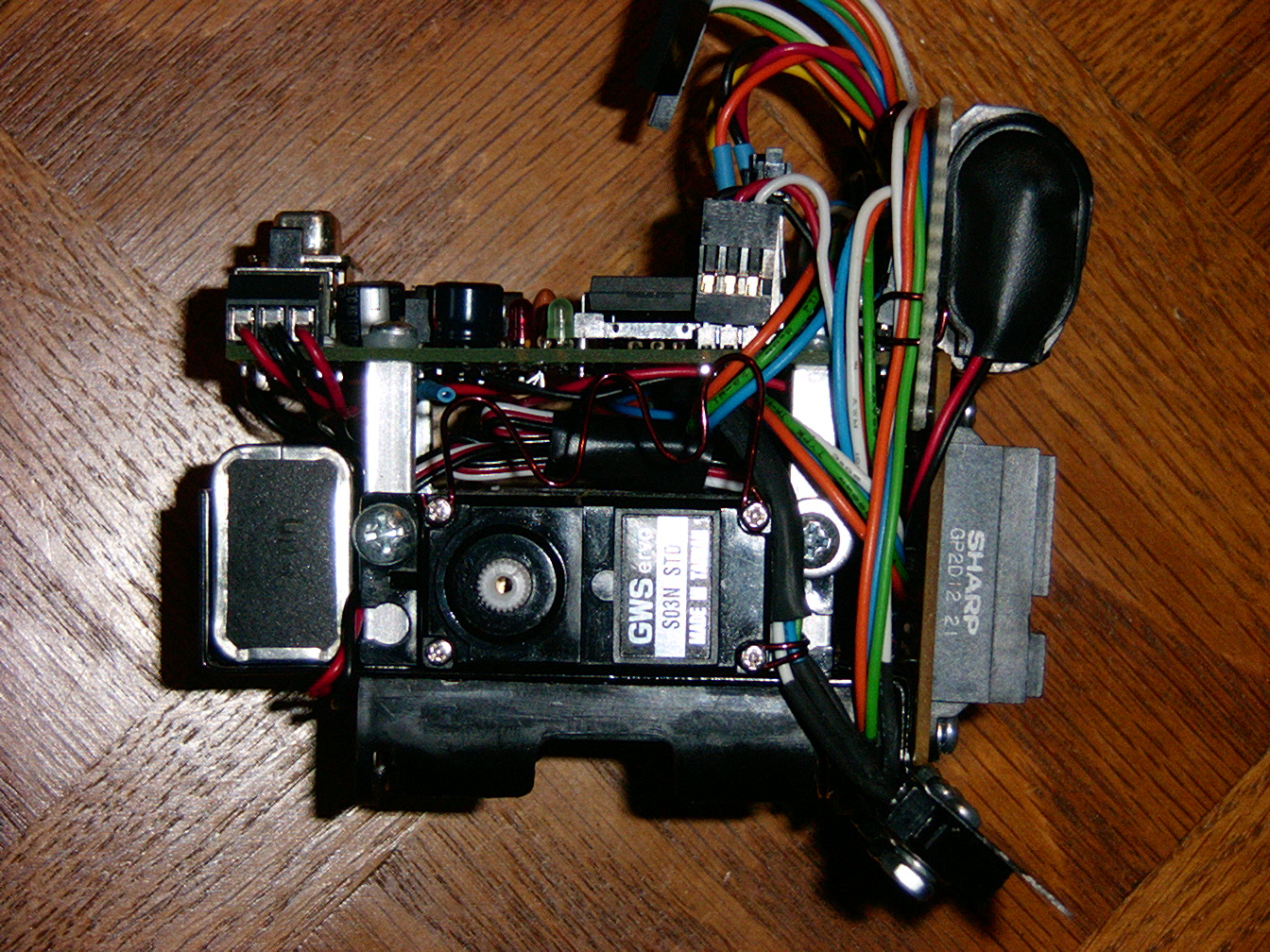

Here's the same view as above, but with the wheels removed. I used some small pieces of magnet wire to help organize the wires. The magnet wire over the servos was originally to keep some weights in place, and to keep the servo sires from getting into the wheels. Since I added the batteries on the front, I don't need any extra weight. Smaller...
