Piston Up

Next

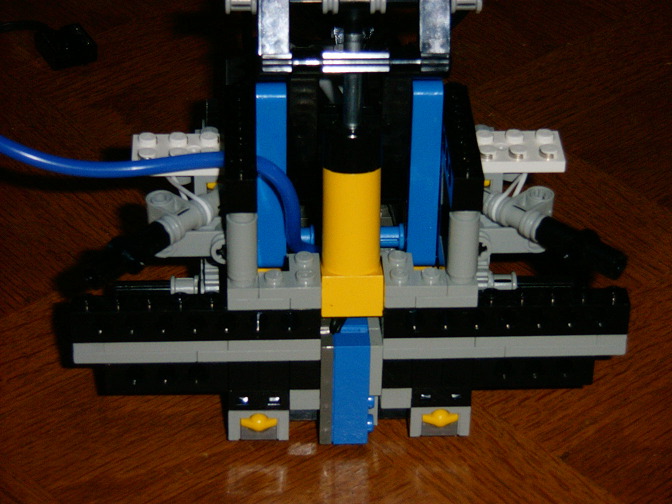

And here it is in the up position. If you look carefully at the previous picture, you will notice a total of 5 sensors. There are three along the bottom (two touch switches and a light sensor). On the left side of the photo, just below the blue tubing and to the right of the white elastic band, you can just make out the yellow portion of another touch switch. This is for the antenna feeler. There is another one in the same place on the right hand side. What! you say the RCX only has 3 inputs! Bigger...
