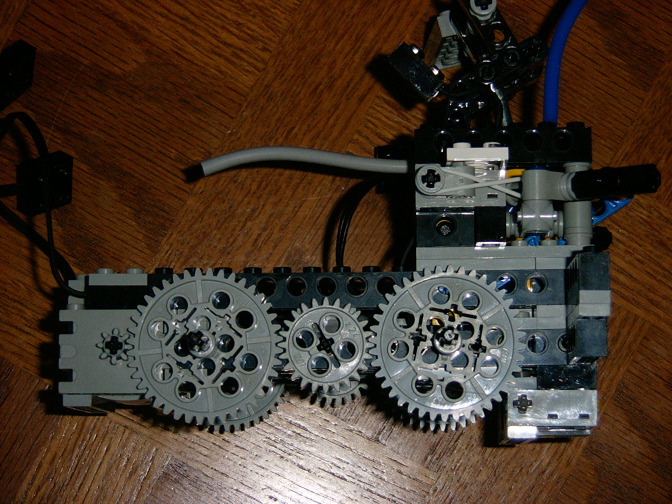

Chassis from the Side

It looks like there isn't much holding the motors in, but they are rather secure. The motors have little slots on each side (two are visible on the left edge of the motor) The black beam attaches at the top, and there are little pieces that fit into the slots (behind the 40 tooth gear) and this seems to provide fairly rigid support. Bigger...
