Spacer Drawing

Next

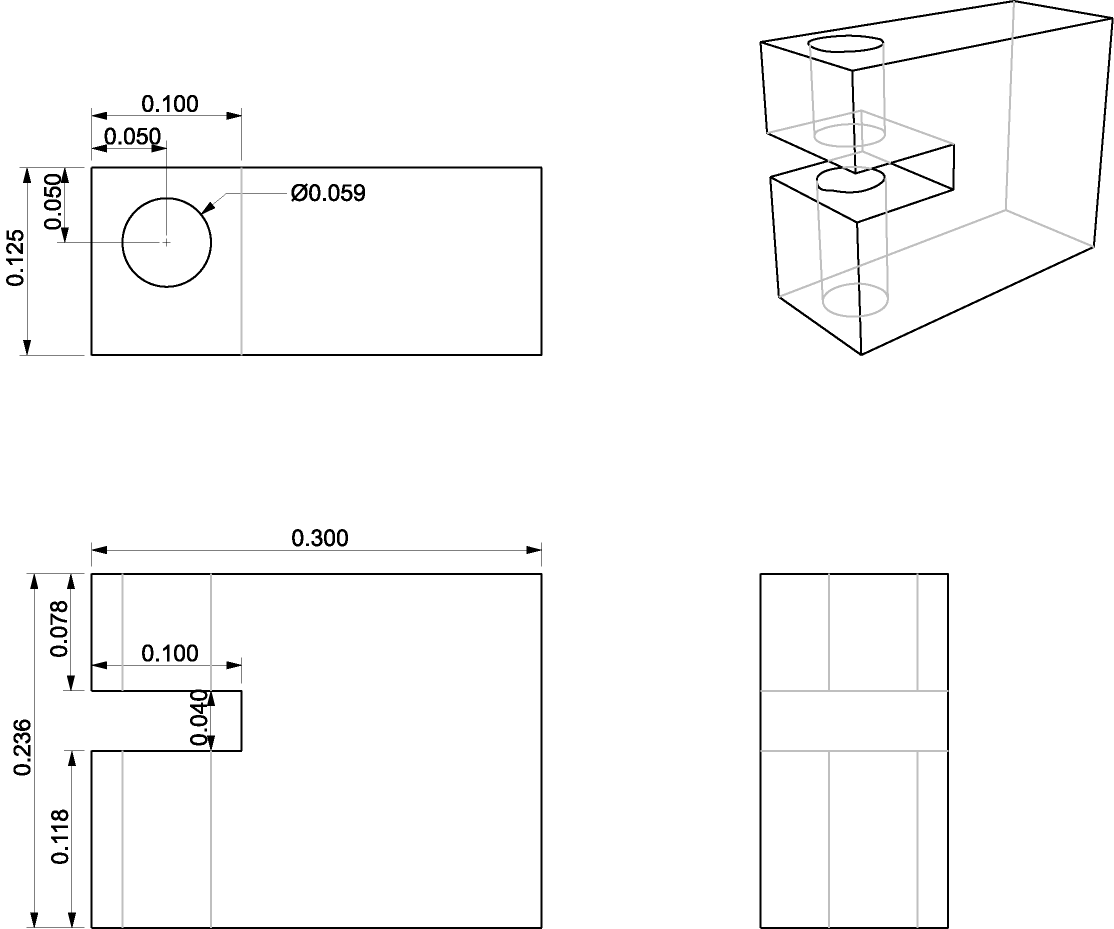

Here's a dimensioned drawing of the spacer. The 60 pin hirose connector has a nominal spacing of 3mm (0.118"). The 92 pin connector has a nominal spacing of 2mm (0.078"). Smaller...
