Compact Flash Card

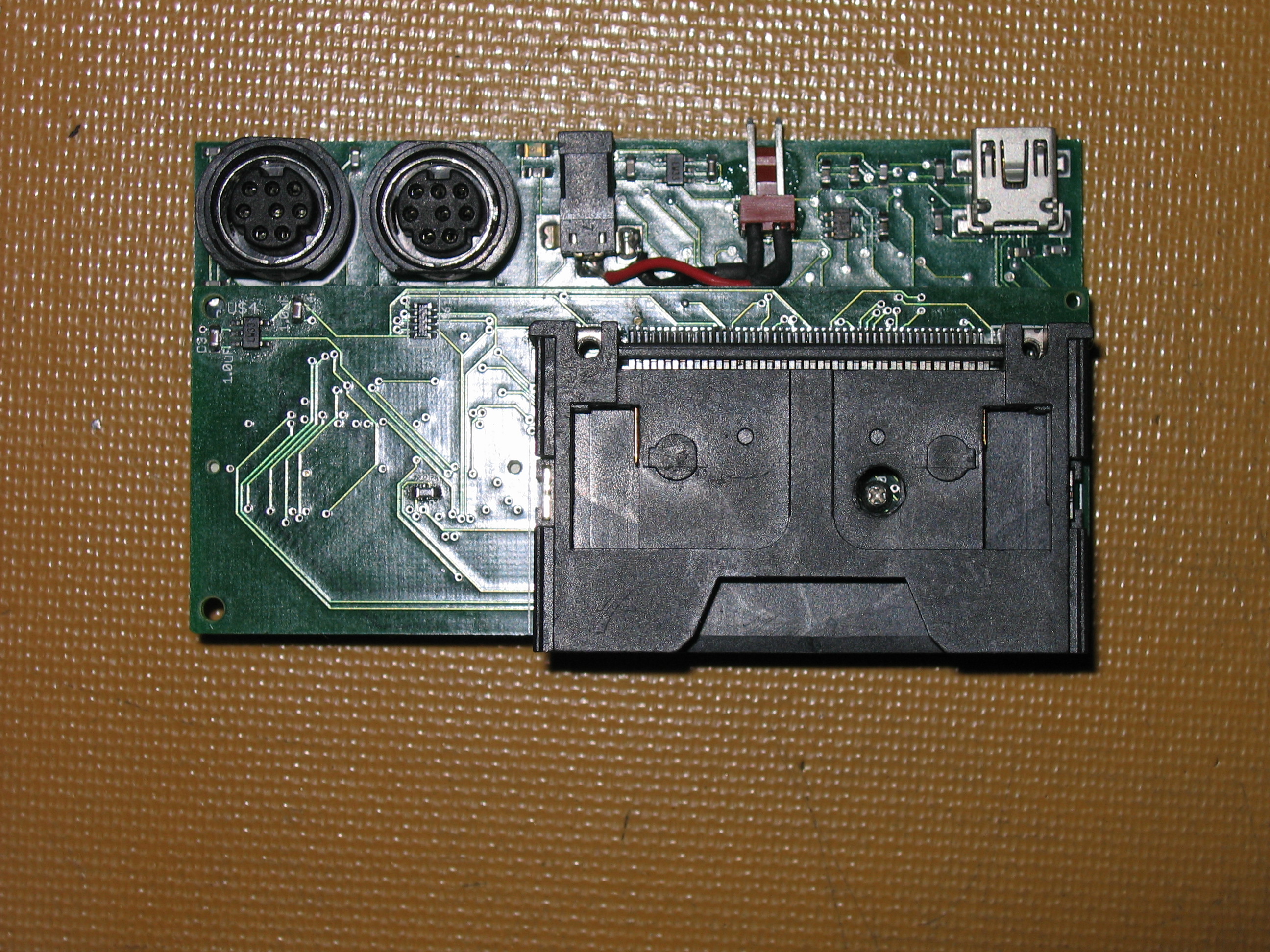

I have one of the older style Compact Flash adapters. The holes that I used for mounting the spacer were covered by the CF slot, so I drilled a couple of holes through the holder. I drilled from the back (through the hole in the PCB) using a #53 drill bit, and then from the front using a 5/32" drill bit. Be very careful when drilling through the bottom of the adapter since you don't want to touch the PCB. Smaller...
