Create the Model

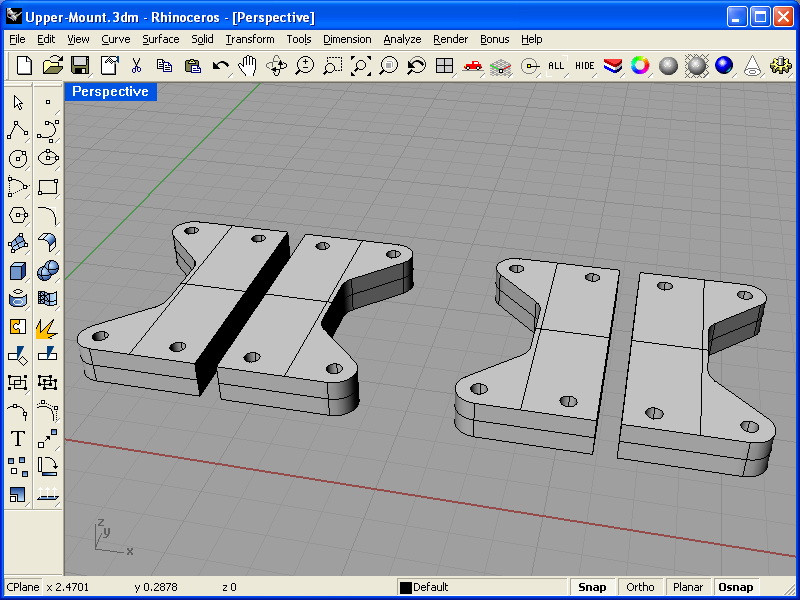

I use a CAD program called Rhino 3D. I start by creating a 3D model of the part. I use the 3D model so that I can combine all of my parts into the finished product and check the finished product to make sure everything will work together. In reality, you can often use a 2D CAD program to design your parts. For those of you with Rhino, here's the Upper-Mount.3dm file. Smaller...
