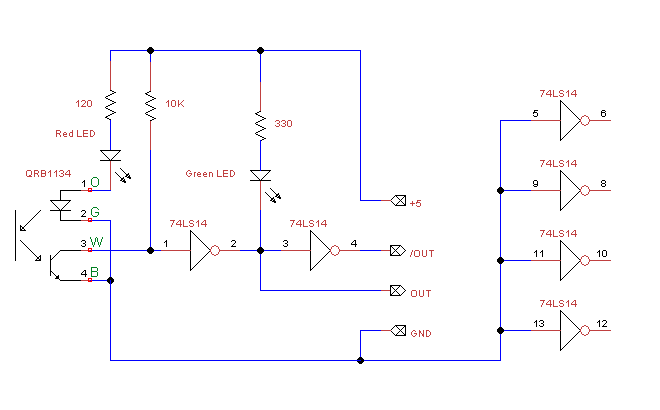

This is the schematic for the encoder. I created it using a rather nifty little program called TinyCAD which is a free schematic capture program. The O, G, W, and B letters next to the QRB1134 correspond to the wire colors which come attached to the sensor.

This is the TinyCAD schematic file: CNC-Spindle-Encoder.dsn. Bigger...
