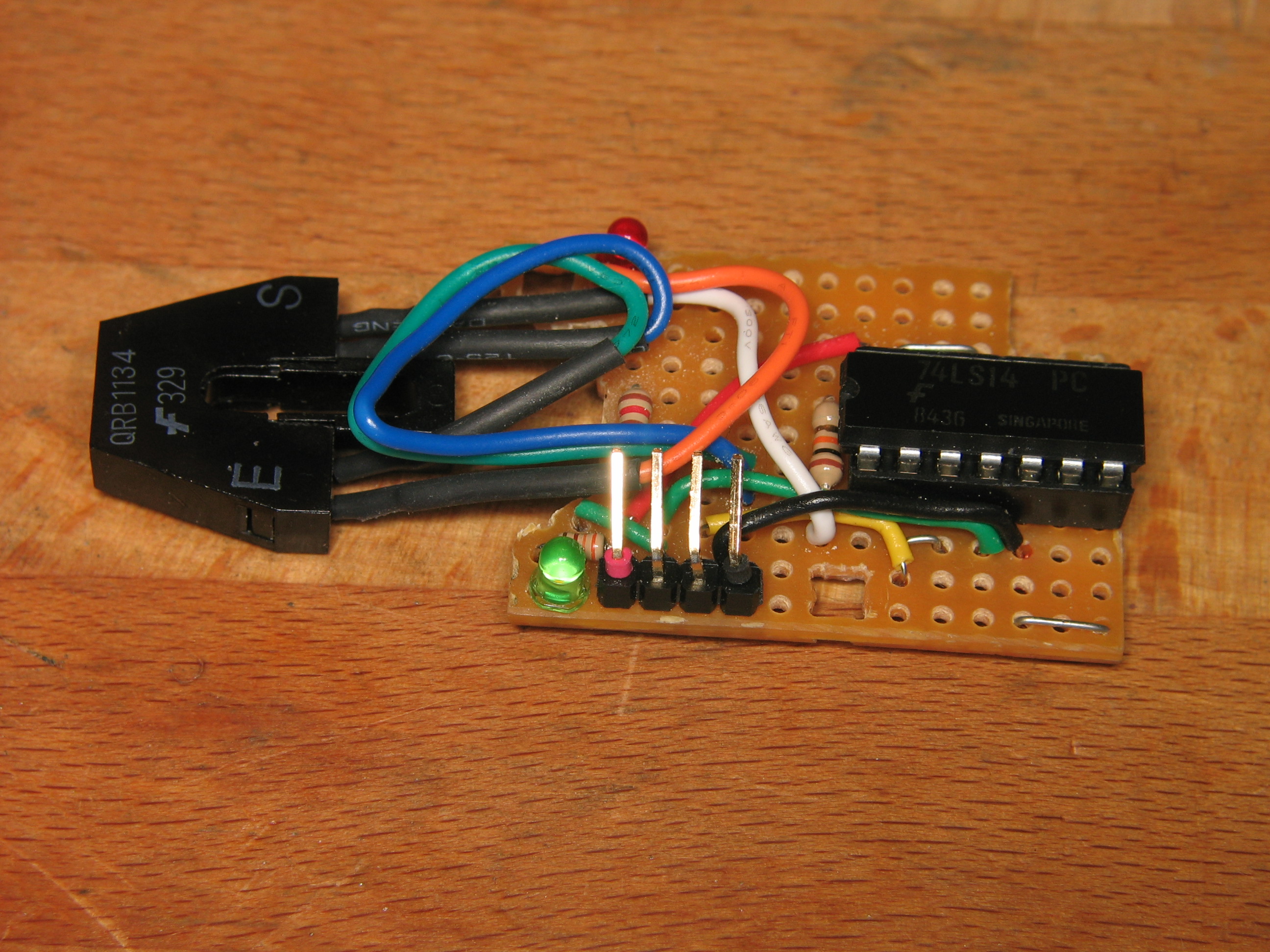

The circuit board out of the box. I used a 4 pin connector so I could disconnect it. The 74LS14 was from my junk box. I left the leads a little long from the sensor so I could adjust it, if required. Smaller...
